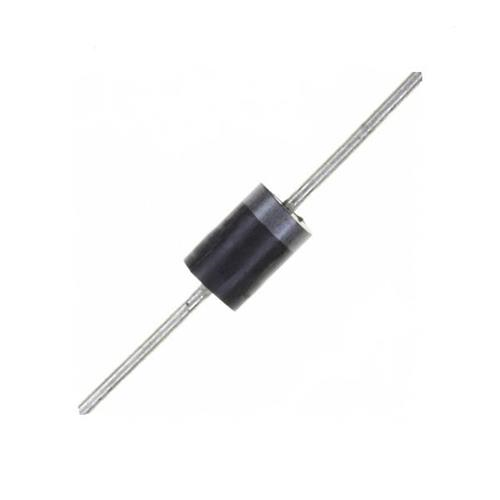

Maximum Repetitive Peak Reverse Voltage |
VRRM |
1000 |
Volts |
Maximum RMS Voltage |
VRMS |
700 |
VoltV |
Maximum DC Blocking Voltage |
VDC |
1000 |
Volts |
Maximum Average Forward Rectified Current
0.375”(9.5mm) lead length at TA= 75? |
I(AV) |
3.0 |
Amps |
Peak Forward Surge Current
8.3mS single half sine wave superimposed on rated load (JEDEC method) |
IFSM |
200 |
Amps |
Maximum Instantaneous Forward Voltage @ 3.0A |
VF |
1.0 |
Volts |
Maximum DC Reverse Current at Rated DC Blocking Voltage per element |
TA = 25? |
IR |
5.0 |
µA |
TA = 150? |
500 |
Maximum Full Load Reverse Current, full cycle
average 0.375”(9.5mm)lead length at TL=75? |
IR(AV) |
500 |
µA |
Typical Junction Capacitance (Note 1) |
CJ |
40 |
pF |
Typical Thermal Resistance (Note 2) |
R?JA |
30 |
°C/ W |
Operating Junction Temperature Range |
TJ |
-55 to +150 |
°C |
Storage Temperature Range |
TSTG |
-55 to +150 |
°C |
